Description

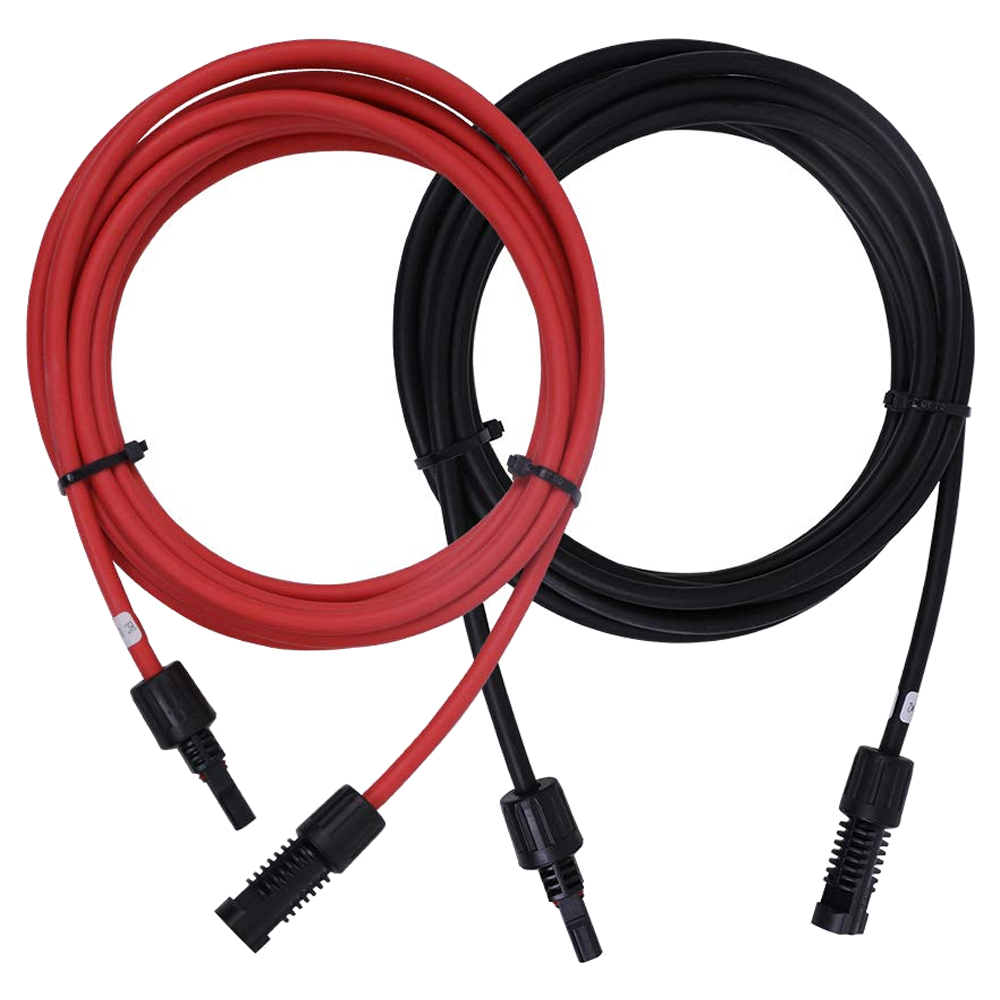

The MC4 Male & Female Solar Panel Cable Connector Pair is the industry-standard plug system engineered to provide highly secure, weatherproof electrical joints within photovoltaic systems. Designed specifically to link solar panels together or transition power cables to your inverter, charge controller, or combiner box, this interlocking pair ensures minimal power loss and maximal outdoor safety.
Product Specifications
-
- Connector Material: High-Strength PPO Housing / Tin-Plated Copper Core
- Waterproof Rating: IP67 / IP68 Certified
- Rated Current: 30A Maximum
- Rated Voltage: Supports systems from 1000V DC up to 1500V DC
- Flame Class: UL94-V0
- Working Temperature: -40°C to +85°C (-40°F to 185°F)
- Compatible Wire Gauges: 14 AWG, 12 AWG, 10 AWG (2.5mm² / 4.0mm² / 6.0mm²)
What’s in the Box?
- 1x Male MC4 Outer Connector Housing (with internal female terminal pin)
- 1x Female MC4 Outer Connector Housing (with internal male terminal pin)
- 2x Waterproof Rubber O-Rings & Tightening End-Caps
